Class PC Automatic Transfer Switch with Overcurrent Release and Rated Current 100-630A

  • 1
  • 2
  • 3

Brand Name : Fenigal

Model Number : Fenigal

Certification : CE

Place of Origin : china

MOQ : 1 pc

Payment Terms : T/T, Western Union

Supply Ability : 60000 Unit/Units per Month

Delivery Time : 5-8 working days

Packaging Details : standard export packing

Rated insulation voltage (V) : 440

Rated impulse withstand voltage (kV) : 6

Rated operation voltage ( ) : 50HZ

Number of poles : 3/4

Electrical endurance (*) : AC50Hz 440V-In

Operation mode : Intermittent operation

Contact Now

Class PC Automatic Transfer Switch with Overcurrent Release and Rated Current 100-630A



Selection notes
Class PC WATSN series products are mainly used to carry and withstand short-circuit
current.

Class PC Automatic Transfer Switch with Overcurrent Release and Rated Current 100-630A



Class PC Automatic Transfer Switch with Overcurrent Release and Rated Current 100-630AModel and specification Electrical characteristics determined according to IEC 60947-6-1 & GB 14048.11 WATSN-100 WATSN-160 WATSN-250 WATSN-400 WATSN-630
Number of poles 3, 4 3, 4 3, 4 3, 4 3, 4
Controller
Type A ■ ■ ■
Type B ■ ■ ■ ■ ■
Type D ■ ■ ■ ■ ■
Actuation component       NSX-NA
Conventional thermal current (A) Ie 60℃   100 160 250 400 630
Class PC Automatic Transfer Switch with Overcurrent Release and Rated Current 100-630A Rated insulation voltage (V) Ui     690 690 690 690 690
Rated impulse withstand voltage (kV) Uimp     8 8 8 8 8
Rated operation voltage (V) Ue AC50Hz   400 400 400 400 400
Making capacity Icm (kA peak)     17 17 17 52.5 52.5
Rated short-time withstand current Icw (kA effective) 30mS   10 10 10 - -
    60ms   - - - 25 25
With elf-protection function (*)     Yes Yes Yes Yes Yes
Isolation function       ■ ■ ■ ■ ■
Pollution degree       Ⅲ Ⅲ Ⅲ Ⅲ Ⅲ
Real closing indication       Yes Yes Yes Yes Yes
Mechanical endurance (**)     12000 12000 12000 12000 12000
Electrical endurance (**) AC50Hz 440V-In 6000 6000 6000 6000 6000
Operation mode Intermittent operation     ■ ■ ■ ■ ■
Control characteristics
Minimum contact transfer time S     1.5 1.5 1.5 2 2
lnstallation and connection accessories
Fixation/panel front connection       ■ ■ ■ ■ ■
Circuit breaker phase partition (***)     Optional Optional Optional Optional Optional
Class PC Automatic Transfer Switch with Overcurrent Release and Rated Current 100-630AMonitoring and indication auxiliary device
Position feedback signal       Optional Optional Optional Optional Optional
Fire protection linkage function       Optional Optional Optional Optional Optional

Notes: (*) Trip under surge of high short-circuit current (**) Maximum expected value with proper maintenance (***) Safety accessories, non-standard configuration








Notes:

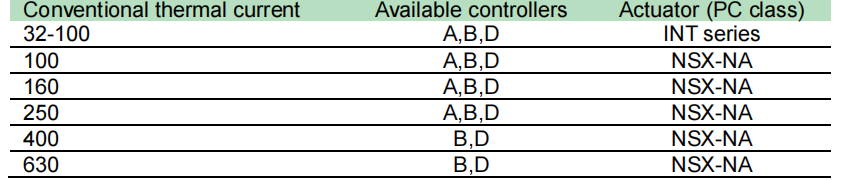

Controller types include: A - End type; B - Basic Type; D- Smart type
Conventional thermal current: 32, 40, 63, 80, 100, 160, 250, 400, 630
Selectable number of poles: 3, 4 (all series)
Electric device Class: PC - without short-circuit and overload protection
Operation modes: R - Automatic change and automatic recovery; S - Automatic  change without automatic recovery; I - Mutual standby
Additional functions: X- Fire protection linkage; F- Feedback signal (position  feedback signal); I - Current monitoring module (only available for Type D controller)
*: For INT series actuators, there is no need to add the text marked by "*" and the following ".".
**: Two installation methods can be provided: Device-mounted and panel-mounted.
Please add a note if panel installation is required.
