High-voltage LiFePO4 battery module
single module is 51.2V 50Ah
Stackable design and easy installation
Safe and reliable
BYD vehicle grade (LFP) battery:
More safety, longer life cycle
More Usable Energy life up to 10 years；

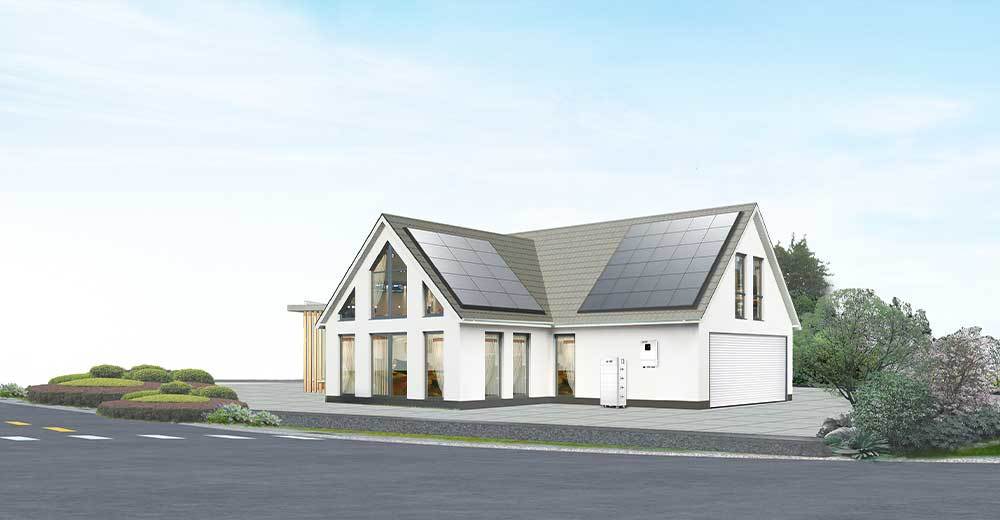

Applicable for residential
and commercial system applications；
Flexible Scalable from 12 to 24 KWH；
Optimization of high-powered emergency-backup
and off-grid function；
Abundant configuration
BYD vehicle grade (LFP) battery:
More Safety, Longer life Cycle
More Usable Energy life up to 10 years；
Applicable for residential and commercial system applications；
Flexible Scalable from 10 to 20 KWH;
Optimization of high-powered emergency-backup and off-grid function；
Benefit
● BYD original blade battery cell
● BYD original battery PACK module
● BYD original BMS/BMU/BCMU
● BYD original structure design
● BYD original technical solutions
● BYD original sales record
| model | 307.2V 50 Ah | 409.6V 50 Ah | 512V 50 Ah |
| Performance | |
| Battery type | Iithium-iron phosphate (LiFePO4) |
| Battery capacity(KWH) | 15.36KWH | 20.48KWH | 25.6KWH |
| Number of layers | 6 layers | 8 layers | 10 layers |
| Nominal Voltage(V) | 307.2V | 409.6V | 512V |
| Operating Voltage Range(V) | 259.2V～336.96V | 345.6～449.28V | 432V～561.6V |
| MAX. continuous charging current(A) | 50A |
| Recommend charge current(A) | 10~25A |
| Max.continue discharging current(A) | 50A |
| Peak current(A) | 100A |
| Depth of discharge(DOD) | 80% |
| Design life | 3500 times @80%DOD |
| Compatible hybrid inverters | SNE8K-G3/SNE10K-G3/SNE12K-G3 |
| Protection function | |
| Protection | Over-temperature, over charge, under-voltage, over-current, short circuit alarm Function |
| Display and Communication | |
| Display | The information of Battery, such as SOC, battery voltage and so on |
| Communication | CAN/RS485 |
| General Specification | |
| Domension (L*W*H)(MM) | 600*210*1300MM | 600*210*1620MM | 600*210*1940MM |
| Weight(KG) | 182KG | 235KG | 288KG |
| Operating Temperature | -20℃-+55℃ |
| Max. operating altitude | 3,000m(Derating above 2,000m) |
| Protection degree | IP21, indoor installation |
| Relative humidity | 5%-95% |
| Cooling | Natural convection |
| Single module Technical Specification | |
| Dimension (L*W*H)(MM) | High Voltage Box:600*210*250MM
Battery Box:600*210*160MM |
| Battery module weight(KG) | 26.5kg |
Application
●Villa
● Household
● Farm
● Base Station
● Field Power Supply
