3 4 Pole Industrial Circuit Breaker Osmart NSC Molded Case 15~630A 35kA 380-400V

Name: 3 4 Pole Industrial Circuit Breaker Osmart NSC Molded Case 15630A 35kA 380400V
Brand: Schneider Electric
Price: 30 USD

Buy cheap 3 4 Pole Industrial Circuit Breaker Osmart NSC Molded Case 15~630A 35kA 380-400V product

Brand Name : Schneider Electric

Model Number : NSC

Certification : CE etc.

Place of Origin : China

MOQ : 1 unit

Price : USD30~USD500

Payment Terms : T/T, Western Union

Supply Ability : 1,000pcs/month

Delivery Time : 5-8 working days

Packaging Details : Standard export carton

Product name : Mccb Moulded Case Circuit Breaker,Good quality 3 Pole tmax 100A mccb Molded Case Circuit Breaker,compact NS 800A 1000A 1250A 1600A mccb Molded Case Circuit Breaker

Rated voltage : 380V,380/400V,AC230/440/660,230/400V AC 50/60Hz

Rated current : 16,25,25,32,40,50,63,80,100,125,160,200,250,315,350,400,500,630A

Poles number : 3P 4P

Breaking capacity : 7.5-35kA

Material : Plastic,High Standard Plastic Silver Copper,Nylon PA66

Installation : Fixed

Standard : IEC 60947-2

Contact Now

CM1 Molded Case Circuit Breaker 2, 3, 4 Pole 10~630A 380V 415V Icu up to 50kA in compliance with IEC 60947

characteristic

As the main switch of the mechanical equipment
Rated current: full range 15~630A
Voltage level: 550V (15~250A), 440V (250A~630A)
Breaking capacity: E7.5KA, B10KA, S18KA, K35KA
Trip unit: thermomagnetic (distribution protection), single magnetic (motor protection)
Number of poles: 3P/4P
Installation method: Fixed installation, horizontal, vertical and flat installation, does not affect electrical performance. Ambient temperature: -25°C~+70°C, derating should be considered when higher than 50°C (40°C should be considered for derating at 630A)

Advantage

60/100 small frame products for small current and small size applications for OEM customers

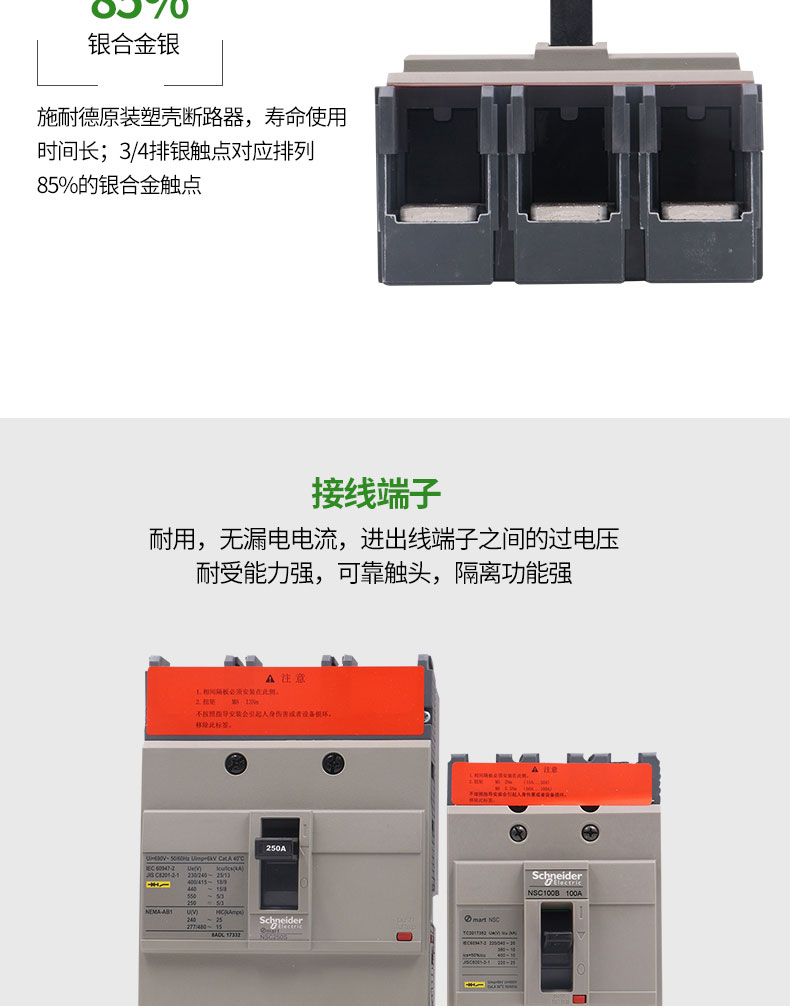

160/250A products share a size, easy to upgrade and interchange 400/630A high current products with dual rotary contact design, superior current limiting capability greatly reduces the short circuit current damage to the equipment
The circuit breaker isolation position has a mechanical indication and a reliable indication status
The accessories are modular and can be freely replaced
Complete certification, green: CCC, CE, CCS (100A), RoHS (250A)

application

All OEM industries:
Rubber and plastic machinery, textile machinery, air conditioning, HVAC, machine tools, communication power, printing and packaging, construction machinery, lifting machinery, elevator industry, etc.

**main information**
Product Series	Osmart NSC
product type	breaker
Product short name	NSC630K
Frame rated current	630 A
Circuit breaker application	Distribution protection
Number of poles	3P
Rated current [In]	630 A on 40 °C
Breaking capacity	70 kA Icu on 220/240 V AC 50/60 Hz in accordance with IEC 60947-2 35 kA Icu on 380 V AC 50/60 Hz in accordance with IEC 60947-2 35 kA Icu on 400 V AC 50/60 Hz in accordance with IEC 60947-2

**Additional information**
Protection pole description	3d
Circuit breaker model	K
Network Type	AC
Network frequency	50/60 Hz
Control type	handle
Installation type	Fixed
Installation method	Base plate installation
Connection method - upper end	Front connection
Connection method - lower end	Front connection
Rated insulation voltage [Ui]	690 V in accordance with IEC 60947-2
Rated impulse withstand voltage [Uimp]	6 kV in accordance with IEC 60947-2
Rated working voltage [Ue]	440 V AC 50/60 Hz in accordance with IEC 60947-2
Use category	AC class
Rated use short circuit breaking capacity [Ics]	75 % on 220/240 V AC 50/60 Hz in accordance with IEC 60947-2 50% on 380/400 V AC 50/60 Hz in accordance with IEC 60947-2
Mechanical life	10,000 times
Electrical life	3000 times in accordance with IEC 60947-2
Phase spacing	45 mm
Trip unit name	ETS 2.3
Trip unit type	Electronic
Trip unit rating	630 A on 40 °C
Type of protection	Overload protection (long delay) Short circuit short delay protection Short circuit transient protection
Long delay current setting type	Fixed
Long delay current setting value [Ir]	1 In
Long delay time setting type	Fixed
[tr] Long delay time setting range	90...180 s on 1.5 x Ir 5...7.5 s on 6 x Ir 3.2...5 s on 7.2 x Ir
Short delay current setting type	8 files adjustable
Short delay current setting value [Isd]	2...10 x Ir
Short delay time setting type	Fixed
Short delay time setting value [tsd]	0...60 s
Instantaneous protection current setting type	Fixed
Instantaneous protection setting [Ii]	11 x In

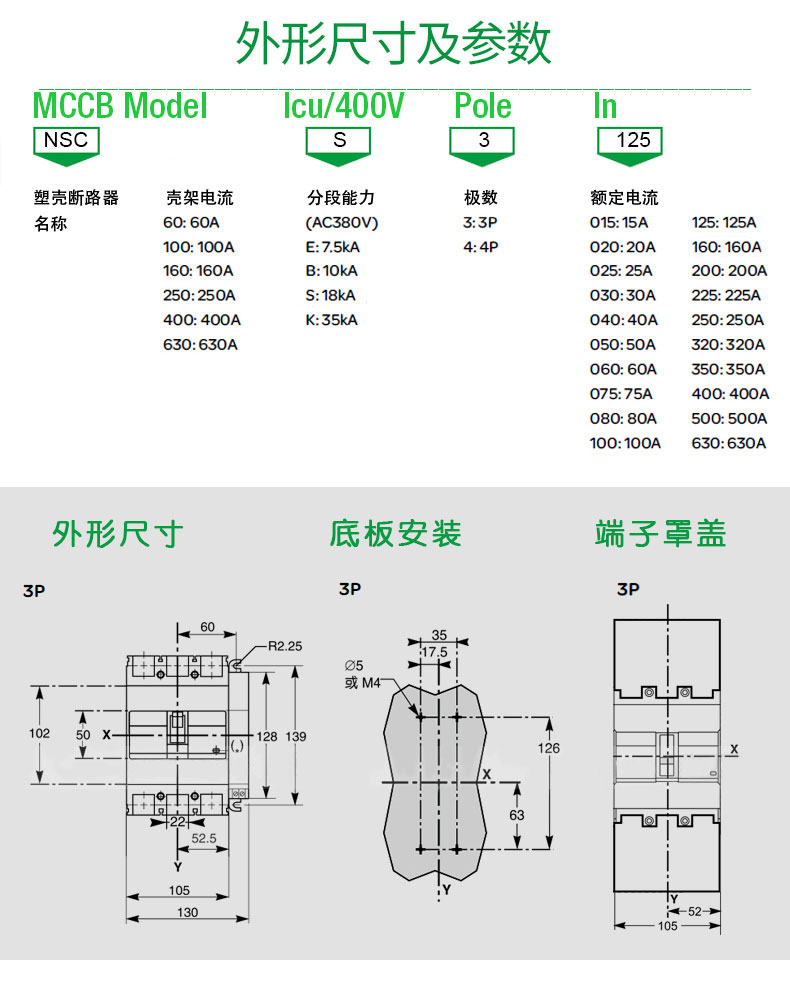

height	255 mm
width	140 mm
depth	110 mm
product weight	6.2 kg

**surroundings**
Standards compliant	IEC 60947-2
certified product	CE
Pollution level	3 in accordance with IEC 60947
Operating temperature	-25...70 °C
Storage ambient temperature	-35...85 °C

3 4 Pole Industrial Circuit Breaker Osmart NSC Molded Case 15~630A 35kA 380-400V
